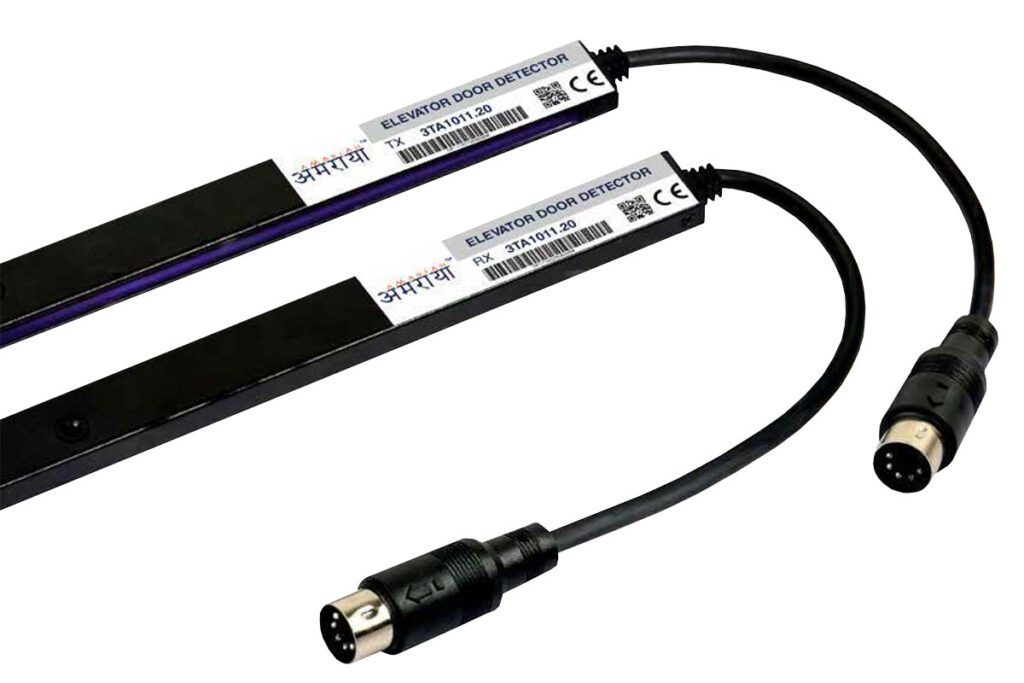

Multi Beam Sensors

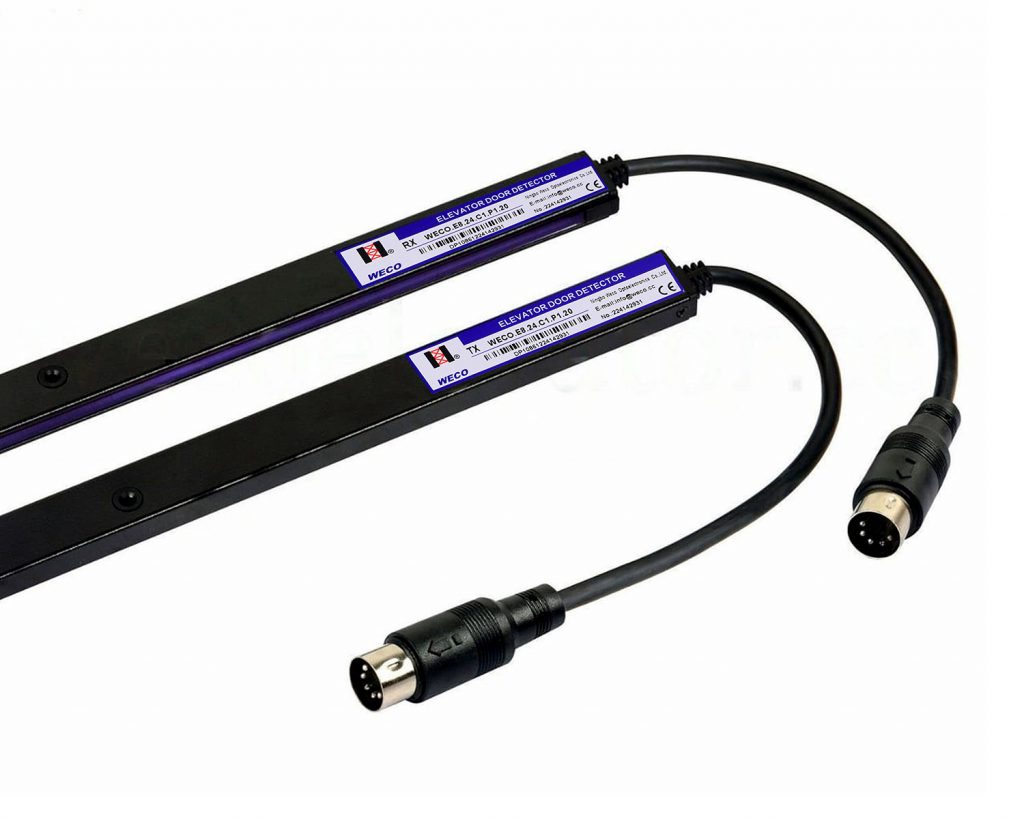

E8.24.C1.P1.20 E8.24.C1.P1.20 TECHNICAL FEATURES Dimension 11mm x 24mm x 2000mm Nº of infra-red beams 94 Non-parallel beams Nº of diodes 17 diodes Scan mode 6 ways Response time 45ms Diodes spacing 118mm Detecting range 0 – 4000mm Detecting height 20 – 1840mm Power consumption <4W or 100mA/DC24V Operating temperature -20ºC – +65℃ Storage temperature -4ºC

E5.01.C1.P1.20 E5.01.C1.P1.20 TECHNICAL FEATURES Dimension 11mm x 24mm x 2000mm Nº of infra-red beams 154 Non-parallel beams Nº of diodes 32 diodes Scan mode 5 ways Response time 61ms Diodes spacing 118mm Detecting range 0 – 4000mm Detecting height 20 – 1840mm Power consumption <4W or 100mA/DC24V Operating temperature -20ºC – +65℃ Storage temperature -4ºC

E5.02.C1.P1.20 E5.02.C1.P1.20 TECHNICAL FEATURES Dimension 10mm x 38mm x 2000mm Nº of infra-red beams 154 Non-parallel beams Nº of diodes 32 diodes Scan mode 5 ways Response time 61ms Diodes spacing 118mm Detecting range 0 – 4000mm Detecting height 20 – 1840mm Power consumption <4W or 100mA/DC24V Operating temperature -20ºC – +65℃ Storage temperature -4ºC

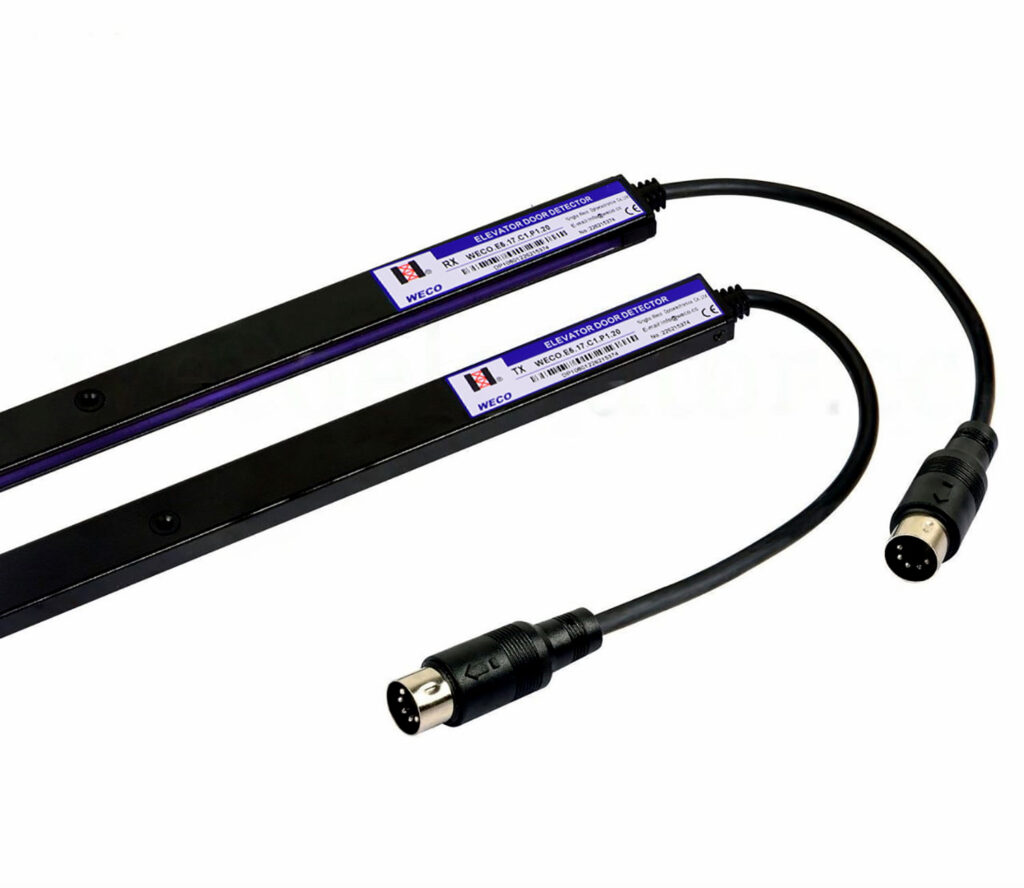

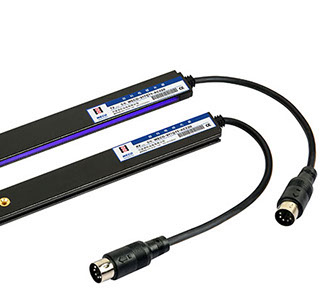

E5.17.C1.P1.20 E5.17.C1.P1.20 TECHNICAL FEATURES Dimension 11mm x 24mm x 2000mm Nº of infra-red beams 154 Non-parallel beams Nº of diodes 32 diodes Scan mode 5 ways Response time 45ms Diodes spacing 118mm Detecting range 0 – 4000mm Detecting height 20 – 1840mm Power consumption <4W or 100mA/DC24V Operating temperature -20ºC – +65℃ Storage temperature -4ºC

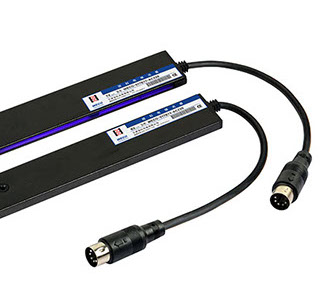

E5.17.C1.P3.24 E5.17.C1.P1.24 TECHNICAL FEATURES Dimension 11mm x 24mm x 2000mm Nº of infra-red beams 154 Non-parallel beams Nº of diodes 13 diodes Scan mode 6 ways Response time 45ms Diodes spacing 118mm Detecting range 0 – 4000mm Detecting height 20 – 1840mm Power consumption <4W or 100mA/DC24V Operating temperature -20ºC – +65℃ Storage temperature -4ºC

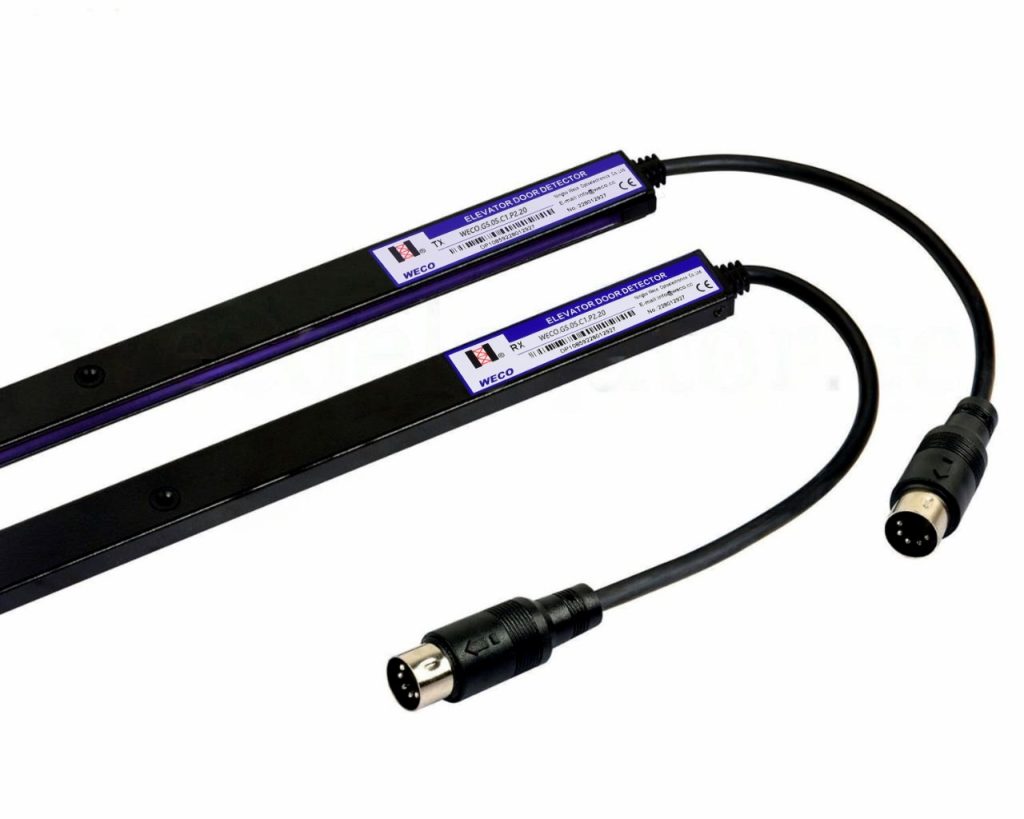

G5.05.C1.P2.20 G5.05.C1.P2.20 TECHNICAL FEATURES Dimension 11mm x 24 mm x 2000 mm Nº of infra-red beams 154 Non-parallel Nº of diodes 32 diodes Scan mode 5 ways Response time 53ms Diodes spacing 118mm Detecting range 0-3000mm (Max.4000mm as required) Detecting height 20 – 1840mm Power consumption <4W or 100mA/DC24V Operating temperature -20ºC – +65℃ Storage

G8.05.C1.P2.20 G8.05.C1.P2.20 TECHNICAL FEATURES Dimension 11mm x 38 mm x 2000 mm Nº of infra-red beams 94 Non-parallel Nº of diodes 17 pairs Scan mode 6 ways Response time 53ms Diodes spacing 118mm Detecting range 0-3000mm (Max.4000mm as required) Detecting height 20 – 1840mm Power consumption <4W or 100mA/DC24V Operating temperature -20ºC – +65℃ Storage

D5.MD.C1.P3.20 Integrated 3D Model WECO-957MD 3D protection, detected to the stereoscopic area. D5.MD.C1.P3.20 TECHNICAL PARAMETERS Number of Infra Red Diodes 32 Diode sets Response Time 61 ms relay input37ms transistor output Scanning Beams 154-94 Beams Infrared Diodes Range 58.8mm Detecting Height 20-1841mm Redundancy (one transmitter shielded after 120s detected absent) ● Up/Down: ±15mm/7º Back/forth: ±3mm/5º Tolerance

PHOTOELECTRIC SWITCH WECO-K2 TECHNICAL FEATURES USP 13 – 30 VDC Power of Consumption Max 40mAC NPN Output Saturation Voltage NPN <1V (IL = 100mA) PNP Output Saturation Voltage PNP <2V (IL = 100mA) Response Time max 1ms Maximum Output Current 200 mA Output Mode NPN/PNP push-pull Operating Temperature -20ºC – 65ºC, 100,000LUX Protection Level IP65
