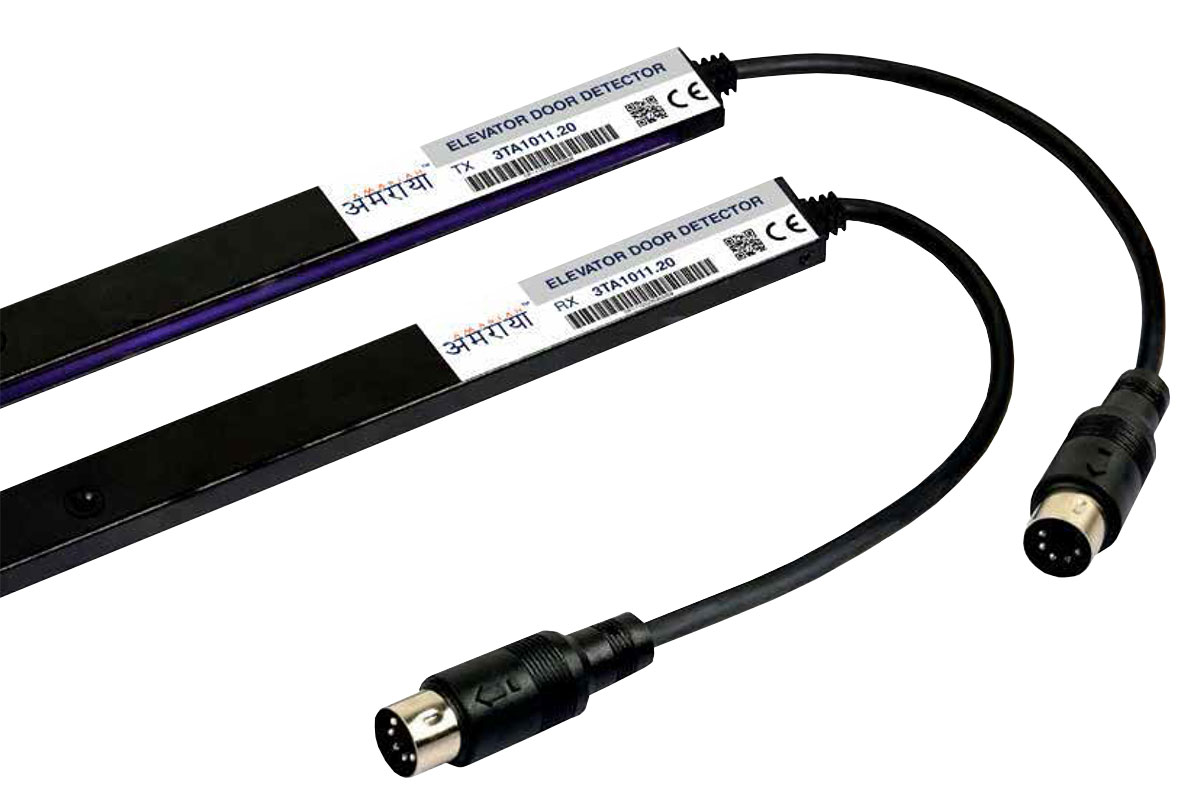

Elevator Door Detector - 7TA1011.20
| 7TA1011.20 | TECHNICAL FEATURES |

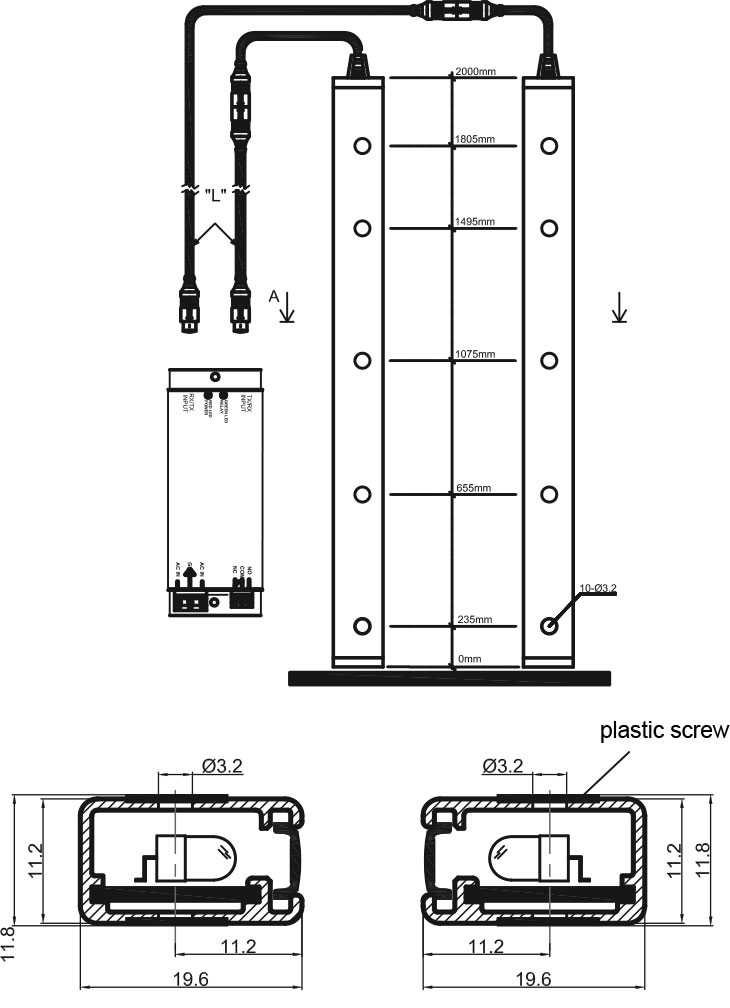

| Dimension | 11mm x 20mm x 2000mm |
| Nº of infra-red beams | 94 Non-parallel beams |
| Nº of diodes | 17 diodes |
| Response time | <100 |
| Diodes spacing | 59mm |
| Detecting range | 0 - 4000mm |
| Detecting height | 20 - 1840mm |
| Power consumption | <4W or 100mA/DC24V |
| Operating temperature | -20C - +65C |
| Storage temperature | -40C - +85C |
| Tolerance | Vertical: +/-15mm/7º, Horizontal: +/-3mm/5º |
| Light immunity | >100,000 Lux |
| System indicators | Normal-Interrupted-Faulty |
| LED indicators | Green LED x 1, Red LED x 1 |
| Protection level | IP54 |
| Connecting cable | 3500mm x 2 (Super strong flexible cable) |
| A011 | TECHNICAL FEATURES |
| Dimension | 127mm x 67mm x 39.5mm |
| Operating Voltage | 230VAC +/-15%60Hz |
| Out put relay capacity | 1N0+1NC + COM |
| Operation life | >10 |
| Power consumption | 4VA |
| LED INDICATION | Red LED indicates Power status Green LED indicates O/P status |
| Case material | Steel & Aluminium |

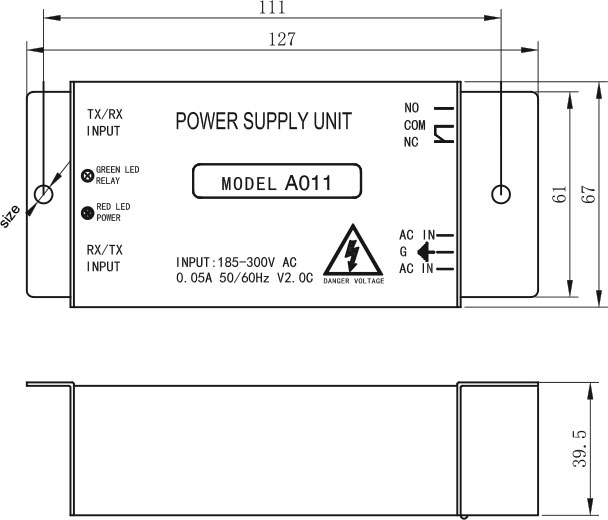

POWER SUPPLY A011
